Grinding wheels are essential tools in various industries, including manufacturing, construction, and metalworking. They are used for shaping, sharpening, and finishing different materials such as metal, wood, and ceramics. Understanding the different types of grinding wheels is crucial for achieving the desired results and ensuring safety in the workplace.
Understanding the Different Types of Grinding Wheels
1. Straight Wheels: Straight wheels are the most common type of Grinding Wheel and are used for surface grinding, cylindrical grinding, and tool sharpening. They have a flat surface and are available in various sizes and grits. Straight wheels are versatile and can be used for both rough and precision grinding tasks.
2. Cylinder Wheels: Cylinder wheels are similar to straight wheels but have a slightly curved shape. They are used for grinding curved surfaces, such as the inside of pipes and tubes. Cylinder wheels are available in different diameters and thicknesses to suit various applications.
3. Tapered Wheels: Tapered wheels have a tapered shape and are used for grinding threads, gears, and other precision components. They are designed to provide a smooth finish and accurate dimensions. Tapered wheels are commonly used in tool and die making and precision engineering.
4. Dish Wheels: Dish wheels have a concave shape and are used for grinding contours, corners, and edges. They are ideal for shaping and finishing workpieces with complex geometries. Dish wheels are available in different sizes and grits to suit various applications.
5. Diamond Wheels: Diamond wheels are made with synthetic diamond particles bonded to a metal or resin matrix. They are extremely hard and durable, making them ideal for grinding hard and brittle materials such as carbide, glass, and ceramics. Diamond wheels are used for precision grinding tasks that require a high level of accuracy and surface finish.
6. CBN Wheels: Cubic Boron Nitride (CBN) wheels are similar to diamond wheels but are made with CBN particles instead of diamond. They are used for grinding ferrous materials such as steel and cast iron. CBN wheels are highly resistant to wear and can provide a superior surface finish compared to conventional grinding wheels.

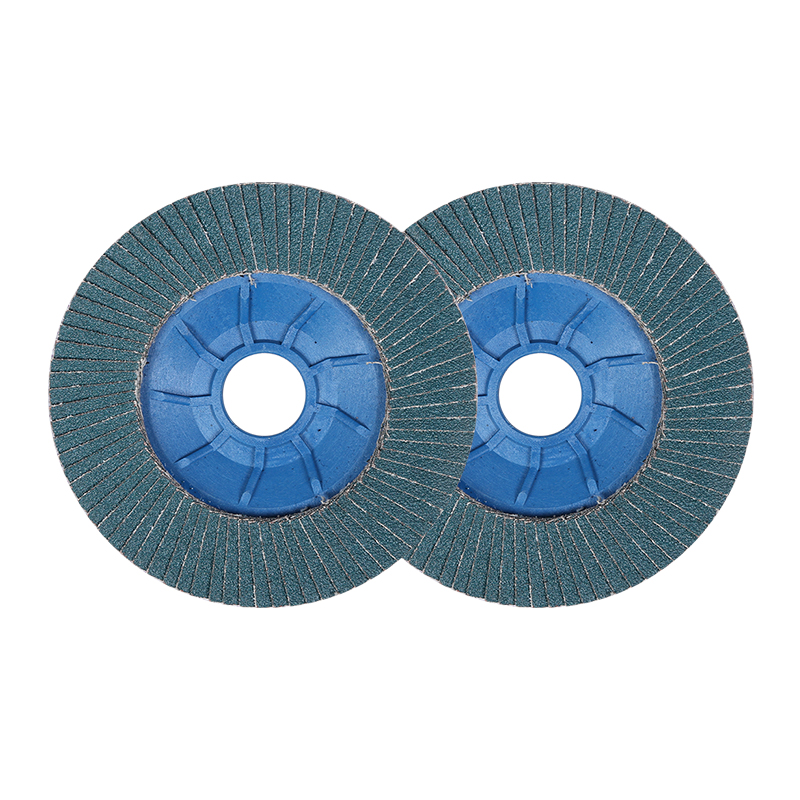

7. Grinding Discs: Grinding discs are thin, flat wheels that are used for cutting, grinding, and finishing tasks. They are commonly used with angle grinders and are available in various sizes and grits. Grinding discs are versatile and can be used for a wide range of applications, including metal fabrication, welding, and construction.
How to Choose the Right Grinding Wheel for Your Project
1. Understand the Material to be Ground:
The first step in selecting the right grinding wheel is to understand the material that you will be grinding. Different materials require different types of grinding wheels to achieve the desired results. For example, grinding wheels for steel are different from those used for aluminum or stainless steel. Make sure to identify the material you will be working with before choosing a grinding wheel.
2. Consider the Type of Grinding:
The type of grinding you will be performing also plays a significant role in selecting the right grinding wheel. Whether you are doing surface grinding, cylindrical grinding, or tool and cutter grinding, each type requires a specific type of grinding wheel. Make sure to match the grinding wheel to the type of grinding you will be doing for optimal performance.
3. Determine the Grit Size:
Grit size is another important factor to consider when choosing a grinding wheel. The grit size of a grinding wheel determines the surface finish and material removal rate. Coarse grit sizes are suitable for rough grinding and removing material quickly, while fine grit sizes are ideal for achieving a smooth finish. Consider the level of precision and finish you require for your project when selecting the grit size of the grinding wheel.
4. Select the Right Bond:
The bond of a grinding wheel refers to the material that holds the abrasive grains together. Different bonds are suitable for different applications, so it is essential to choose the right bond for your project. Resin bonds are commonly used for general purpose grinding, while vitrified bonds are ideal for precision grinding. Make sure to select the appropriate bond for the type of material and grinding you will be doing.
5. Choose the Correct Wheel Shape:
The shape of the grinding wheel also plays a role in the efficiency and effectiveness of the grinding process. There are various wheel shapes available, such as flat, cup, and dish wheels, each designed for specific applications. Consider the shape that best suits your project requirements for optimal results.
Safety Tips for Using a Grinding Wheel
1. Wear proper safety gear: Before using a grinding wheel, make sure to wear the appropriate safety gear, including safety glasses, a face shield, ear protection, and gloves. This will help protect you from any flying debris or sparks that may be generated during the grinding process.
2. Inspect the grinding wheel: Before using a grinding wheel, inspect it for any cracks, chips, or other damage. A damaged grinding wheel can break while in use, causing serious injury. If you notice any damage, do not use the wheel and replace it immediately.
3. Secure the workpiece: When using a grinding wheel, always make sure to securely clamp or hold the workpiece in place. This will help prevent the workpiece from moving or slipping during the grinding process, which can lead to accidents.
4. Use the right wheel for the job: Different grinding wheels are designed for specific tasks, so make sure to use the right wheel for the job at hand. Using the wrong wheel can result in poor performance and increased risk of accidents.
5. Keep a safe distance: When using a grinding wheel, always maintain a safe distance between yourself and the wheel. This will help protect you from any sparks or debris that may be generated during the grinding process.
6. Avoid excessive pressure: While using a grinding wheel, avoid applying excessive pressure to the wheel. Let the wheel do the work, and use a light touch to prevent overheating and premature wear of the wheel.
7. Keep the work area clean: Before using a grinding wheel, make sure to clean the work area of any debris or clutter. This will help prevent accidents and ensure a safe working environment.
8. Do not force the wheel: If the grinding wheel starts to slow down or stall, do not force it to continue grinding. This can cause the wheel to overheat and potentially break. Instead, stop the machine and allow the wheel to cool down before resuming grinding.
9. Do not stand directly in front of the wheel: When using a grinding wheel, avoid standing directly in front of it. Instead, stand to the side to minimize the risk of injury in case the wheel breaks or shatters.
10. Turn off the machine when not in use: When you are finished using the grinding wheel, make sure to turn off the machine and wait for the wheel to come to a complete stop before leaving the work area.
